For Head-end / Hub-site Signal Monitoring and RF Switch Control

The RFSD-2 RF signal monitor measures the amplitude of analog or digital RF signals at two frequencies.

Measurements are compared with programmable limits. Alarms may be indicated locally or remotely. RF switch actions may be initiated. Pilot carrier can be switched in for supporting downstream amplifier AGC circuits.

Compatibility with the SNMP protocol allows the RFSD-2 to be monitored and controlled by most network monitoring systems. Access is via standard 10base-T RJ-45 ethernet connection. All measurements, alarm status and switch status can be monitored remotely. Limits and set-up parameters may be changed and switches may be controlled.

Data Sheet

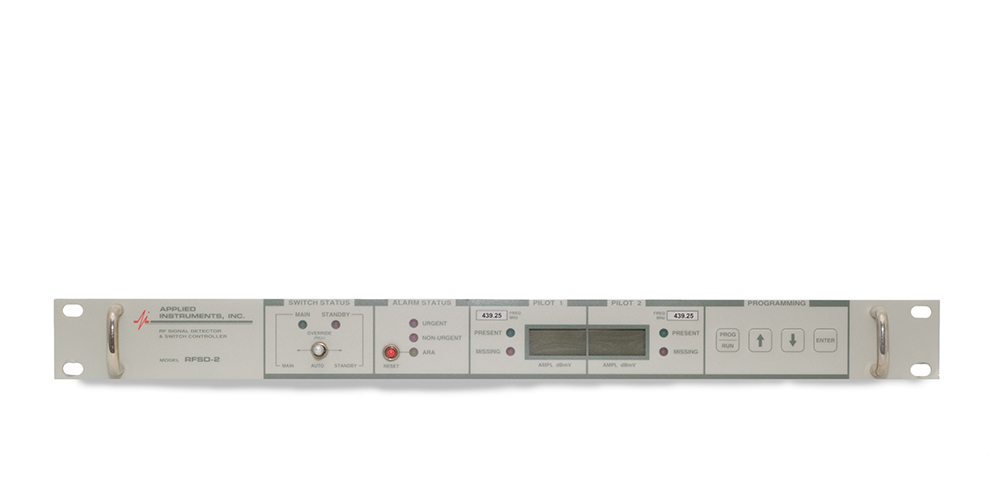

Model RFSD-2™ CATV RF Signal Monitor & Switch Controller
$2195



Model RFSD-2™ w/ Internal Pilot Carrier CATV RF Signal Monitor & Switch Controller
$2295




Optional Internal RF Switch for Model RFSD-2™
$100


*Will ship in 4 weeks
